ZONKE-FMX-9C(V22) Frozen Food Vending Machine
-23°C QUICK-FROZEN Tech：locks freshness at -23°C for ice cream/seafood/meat. Grab meals no queues, no rush.
22″ Smart Micro-Market Console：22-inch touchscreen with cart/discount/member functions + brand-customized UI for 2x sales lift.
Humanized Anti-Theft Access：Waist-height pick-up door (no bending) + anti-tamper plates secure goods during delivery.
Super-Scalable Freezer Shelves：Adjustable-width slots hold 30+ categories: dumplings, seafood, meats, ice cream.
All-Payment Ecosystem：Coins/banknotes/cards + 8 e-wallets (OVO/WeChat Pay/VNPAY)
FROZEN FOOD VENDING MACHINE

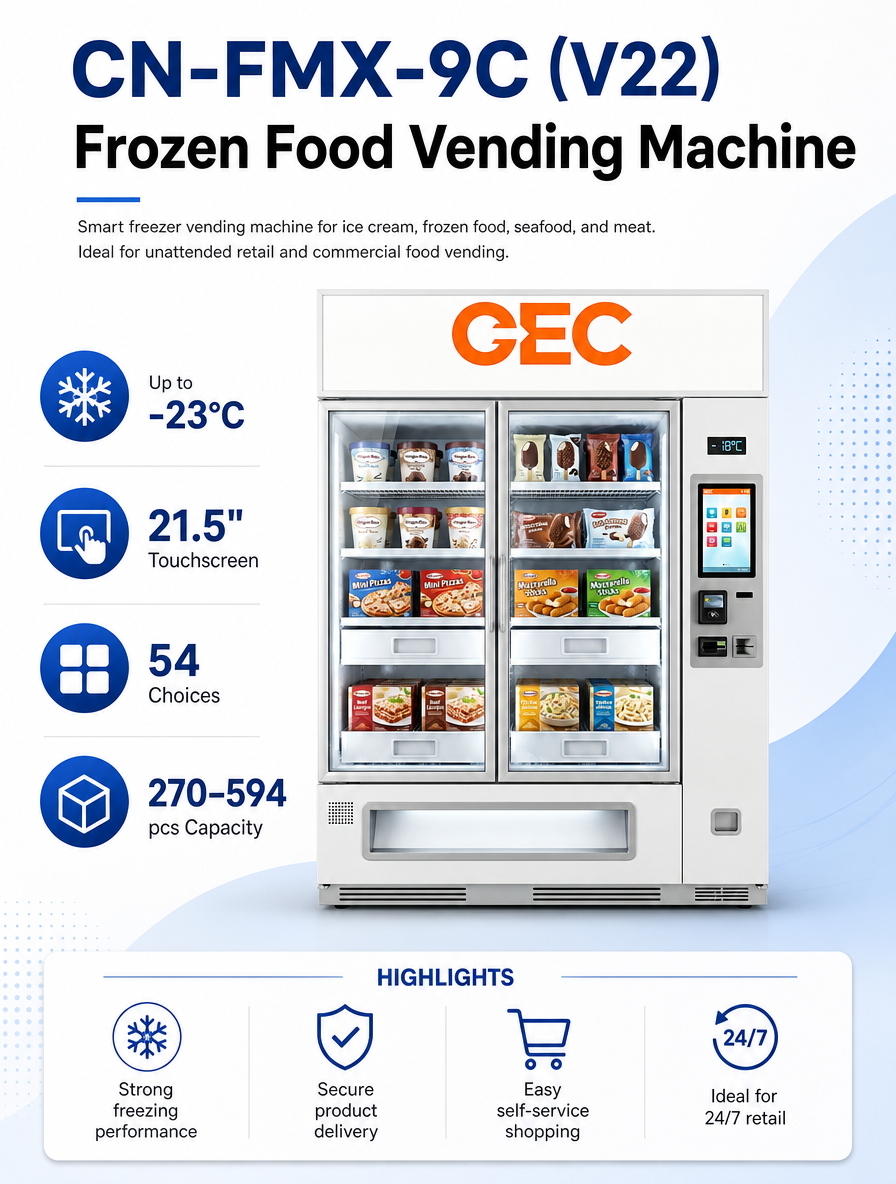

CN-FMX-9C (V22) Frozen Food Vending Machine
A smart freezer vending machine for ice cream, frozen food, seafood and meat sales. Built with strong freezing performance, a wide touchscreen shopping interface and secure product delivery, it is ideal for unattended retail and commercial food vending projects.
Temperature
Up to -23°C
Screen
21.5″ Touchscreen
Selections
54 Choices
Capacity
270–594 pcs
Key Selling Points
-23°C Quick Freezing
Locks freshness for ice cream, seafood, meat and frozen meals with stable low-temperature performance.
21.5″ Smart Touch Interface
Large touchscreen supports shopping cart, promotions, membership functions and video display.
Secure Anti-Theft Pickup
Waist-height pickup door with anti-tamper structure improves user experience and product safety.
Flexible Shelf Layout
Adjustable shelf width supports multiple frozen product sizes and more retail combinations.

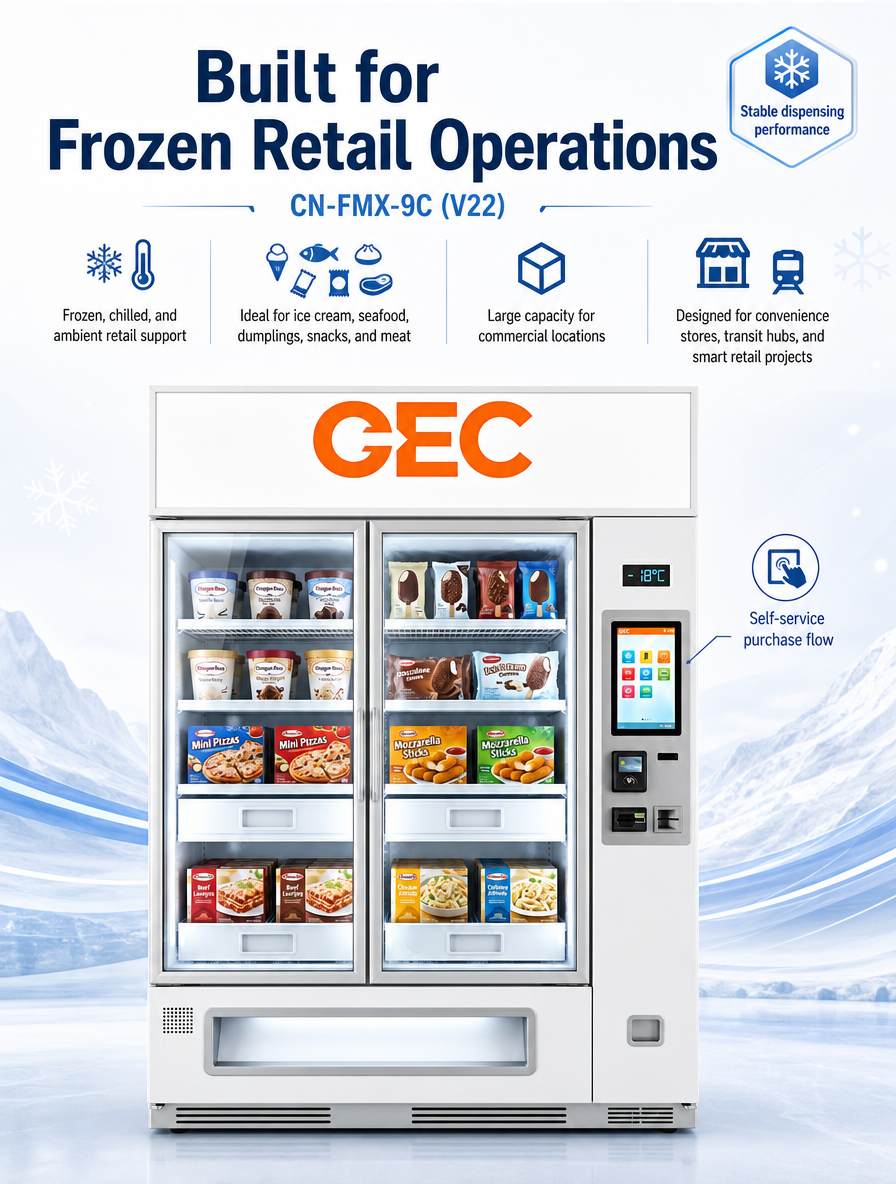

Built for Frozen Retail Operations
CN-FMX-9C (V22) is developed for unattended frozen food retail with strong refrigeration, convenient self-service purchase flow and stable dispensing performance.
- Suitable for ice cream, seafood, frozen snacks, dumplings and meat
- Supports freeze, cooling and normal temperature retail scenarios
- Large capacity design for commercial locations
- Ideal for convenience stores, transport hubs and smart retail projects
Technical Specifications
| Model | CN-FMX-9C (V22) |
| Machine Type | Frozen Food Vending Machine |
| Slot Quantity | 54 choices |
| Type | Spiral / Conveyor |
| Capacity | 270–594 pcs |
| Suitable Products | Ice cream, meat, frozen food, seafood |
| Dimensions | H1960 × W1420 × D950 mm |
| Screen | 21.5-inch Touch Screen |
| Voltage | AC 110V–120V / 220V–240V, 50/60Hz |
| Power | Refrigerated 1320W / Normal 45W |
| Weight | 450 kg |
| Temperature | Adjustable up to -18°C / optional heating module |
| Payment Methods | Bill, coin, cashless payment |
| Cashless Support | Visa, MasterCard, AMEX, Alipay, Apple Pay, Google Pay, Samsung Pay |
Payment & International Compatibility
The machine supports multiple international payment systems and industry-standard vending interfaces.
- Supports notes, coins and change function
- Compatible with MDB and DEX standards
- Supports international payment peripherals
- Suitable for local e-wallet and card integration
Cloud Management Platform
Operators can remotely monitor machine status, inventory, sales data and alerts through a cloud-based management platform.
- Real-time sales and machine status tracking
- Fault alert and maintenance management
- Inventory and replenishment monitoring
- Remote operation support and reporting
Designed for Better User Experience
The waist-height pickup door improves convenience and reduces bending, while the anti-theft structure helps secure goods during delivery.
- Humanized pickup door design
- Three-layer vacuum glass reduces fogging
- Leakage protection and standard delivery inspection system
- Independent refrigeration module for easier maintenance
Why Choose This Model
Frozen Retail Focused
Specially designed for frozen food, ice cream and seafood vending.
Large Capacity
Flexible shelf layout and high-capacity storage for commercial use.
Cashless Ready
Supports cards, mobile wallet and multiple local payment ecosystems.
OEM / ODM Available
Supports branding, UI, hardware and payment customization.
Need a Frozen Vending Solution for Your Market?
Contact us for brochure, pricing, customization details and project support for frozen food retail applications.
